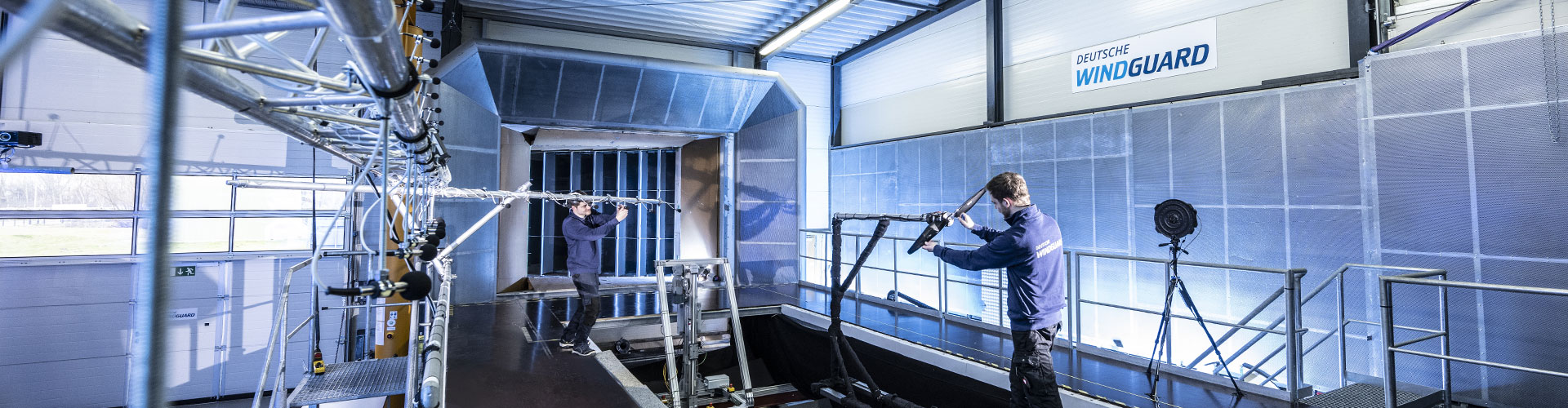

Acoustically optimised Large Wind Tunnel
The acoustically optimised large scale wind tunnel with its specific design is particularly apt for aero-acoustic research & development projects. It also allows for testing on comparatively large components and realistic models. Calibration and function tests of wind measurement sensors at high flow velocities are also possible, just as the use for R&D projects for the industry as well as for scientific institutions.
Test Section Dimensions:
1. Closed test section
B x H x L = 2.75 m x 1.25 m x 5 m
Vmax = 100 m/s
2. ¾ open test section
B x H x L = 4 m x 2.8 m x12 m
Vmax = 40 m/s
Flow Characteristics:
1. Flow Speed
up to 100 m/s
2. Reynoldsnumber
up to 6 million
(based on a 900 mm chord model)
3. Turbulence Intensity in [20:5000] Hz range
≤0,05%
4. Flow velocity deviation
∆V ≤ 0,5%
Measurement Systems:
1. Redundant measurement system
surface & wall press., forces, wake rake
2. 360 degree polars
at Reynolds numbers of up to 1.5 million
3. Thermography for Laminar/ Turbulent transition detection
output data in absolute x/c coordinates
4. Online monitoring of live measurements
no need to travel
